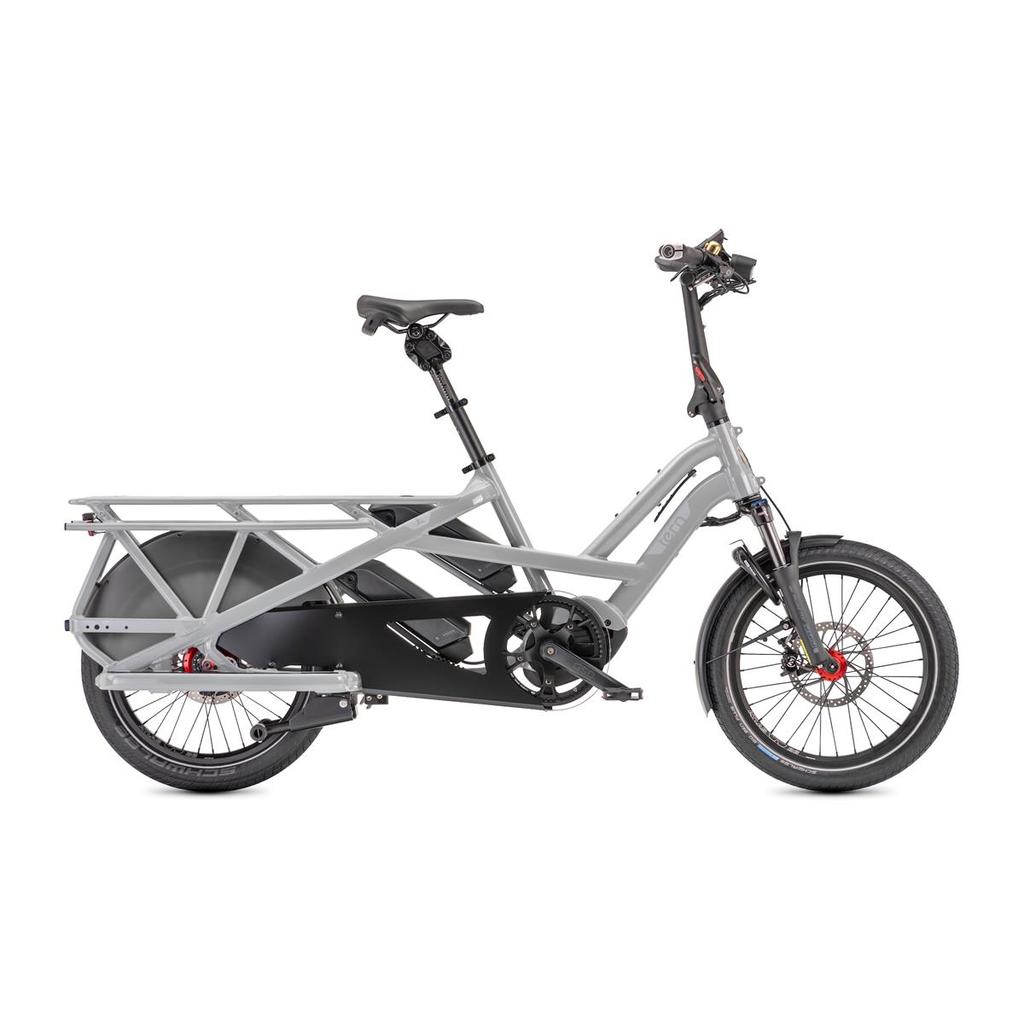

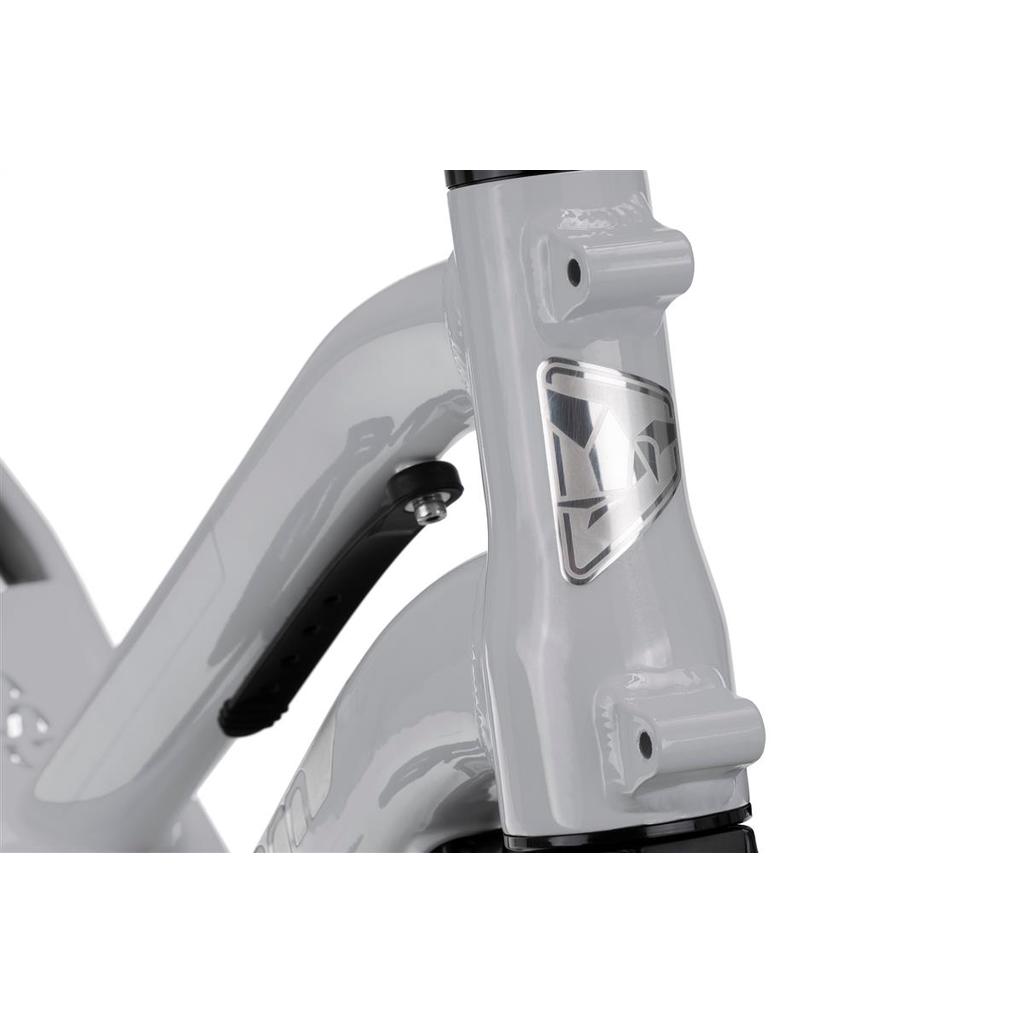

Rama

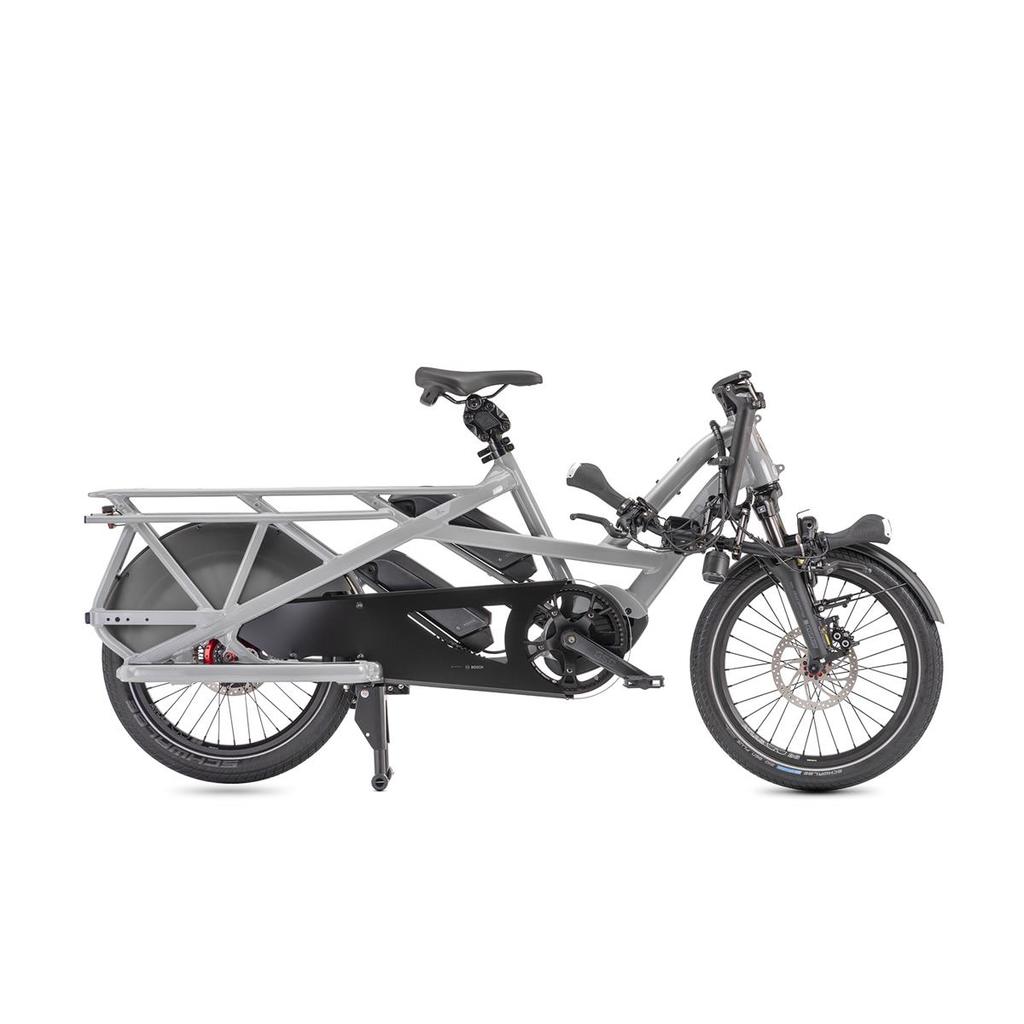

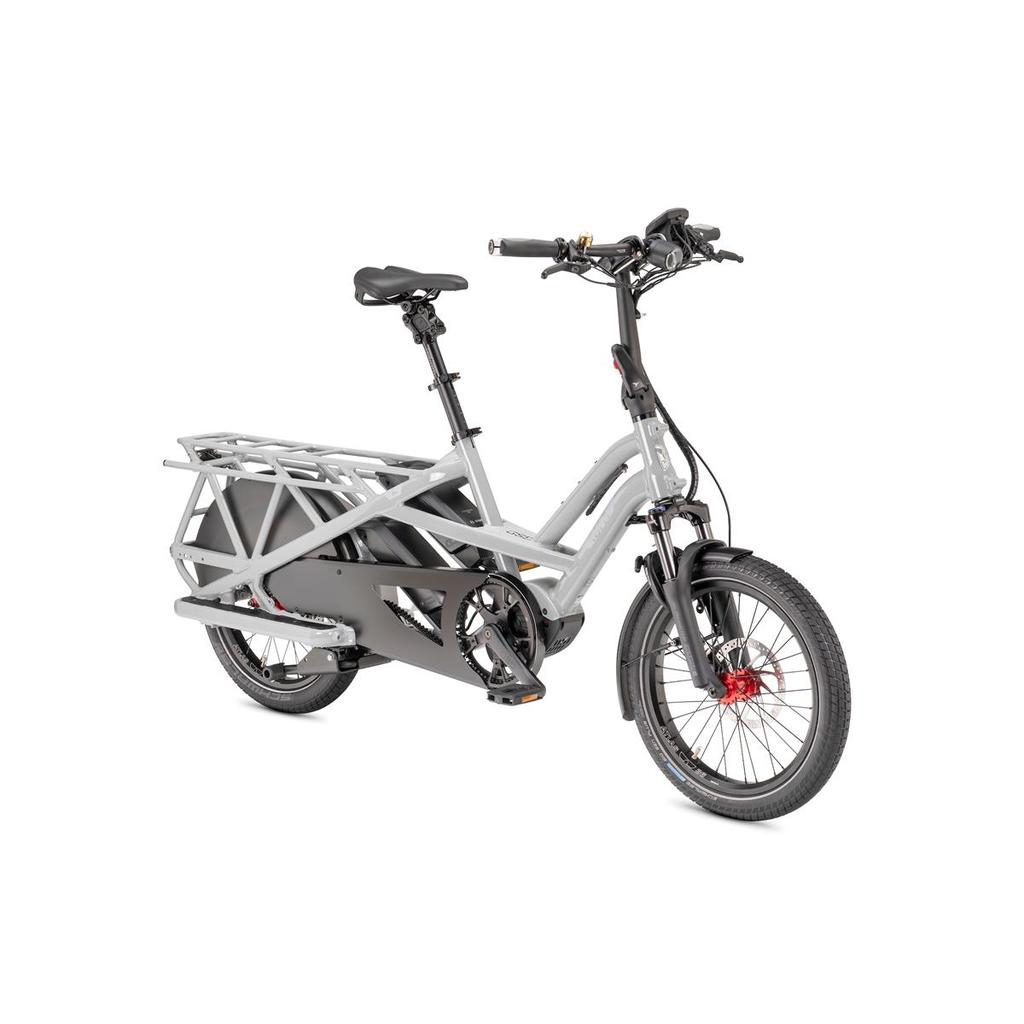

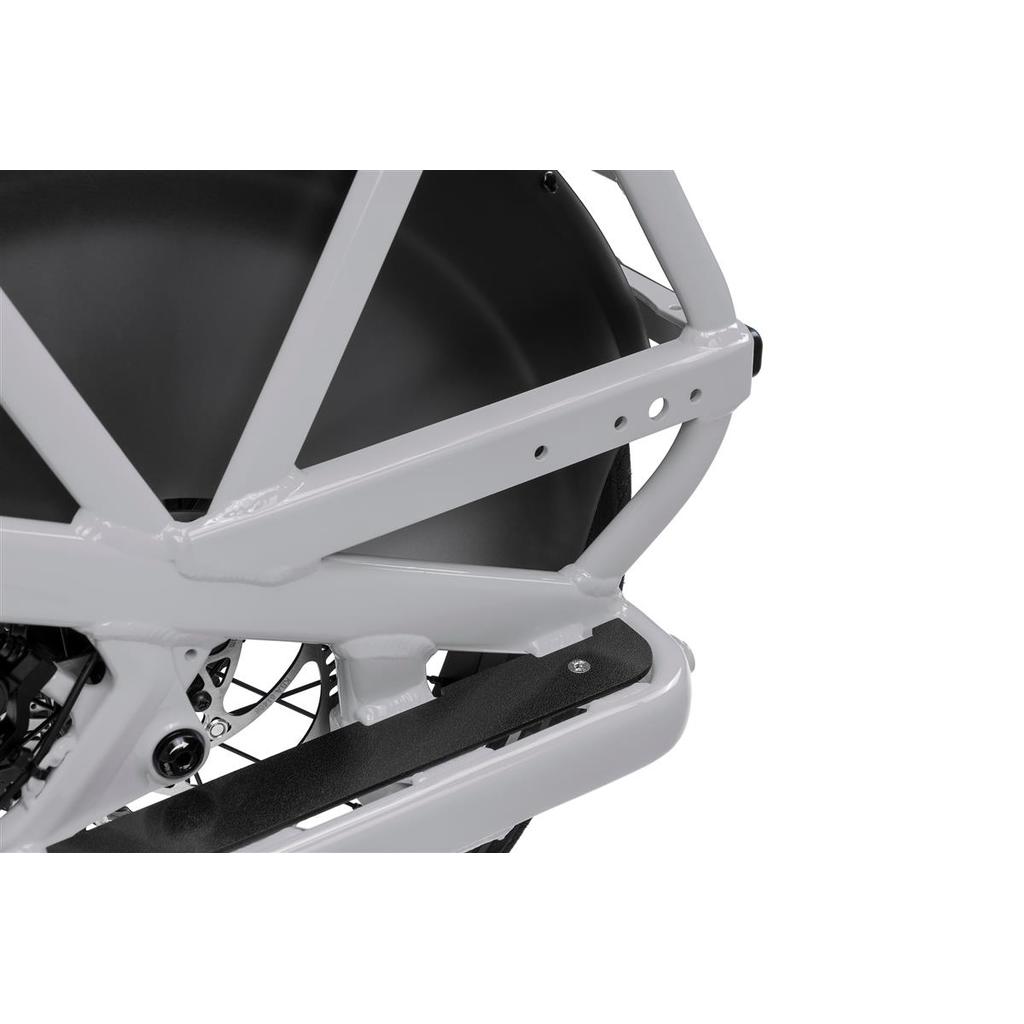

Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
-

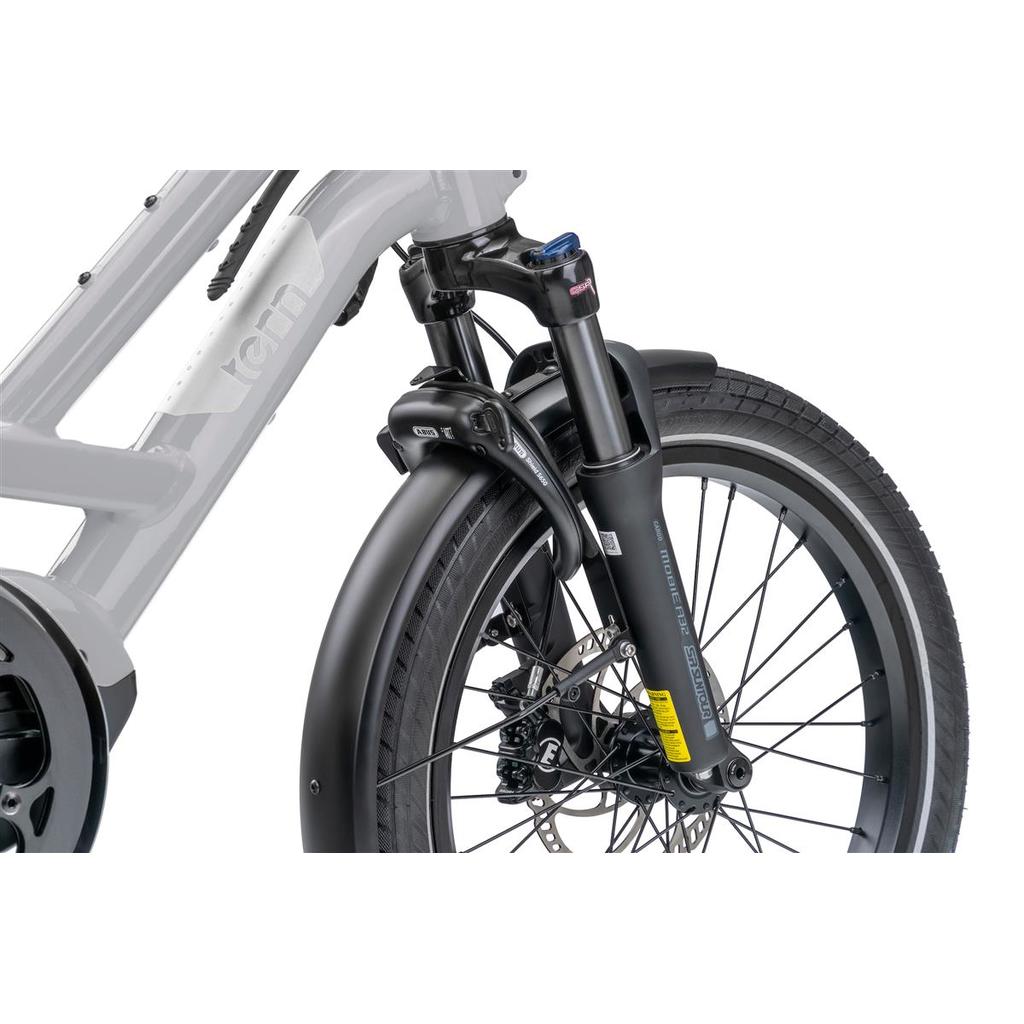

Widelec
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
-

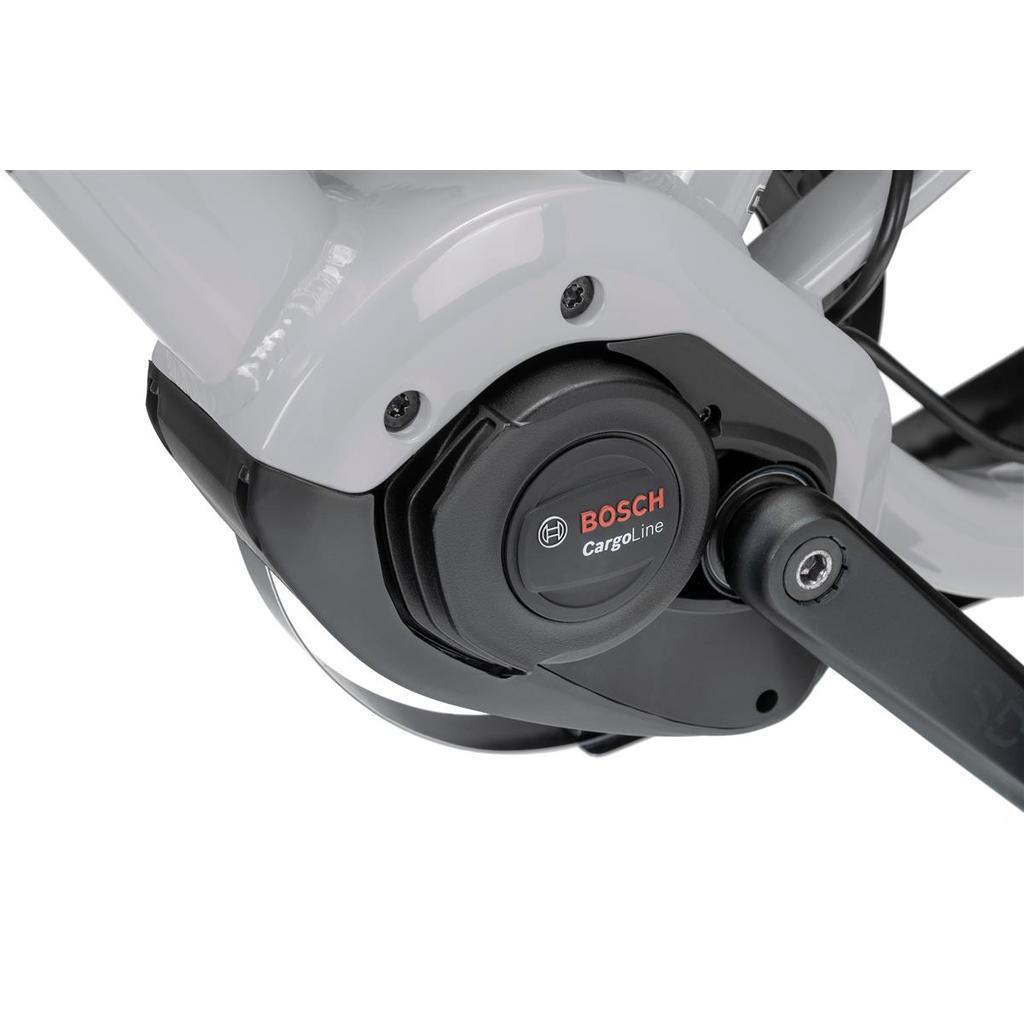

Silnik
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU)
-
Akumulator

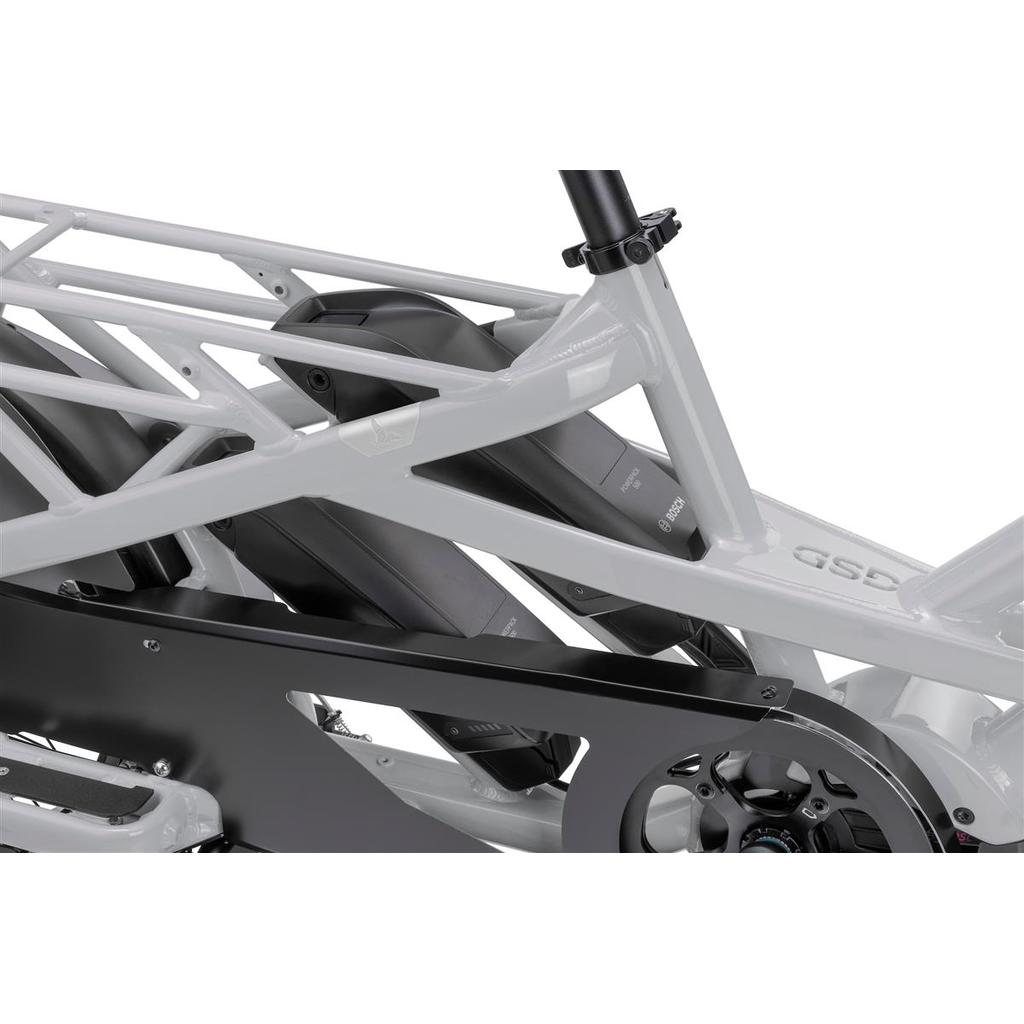

Bosch Dual Battery system, 2x500 Wh
-
Manetki
Rohloff E14, e-shift 14 spd
-
Hamulec przód
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
-
Hamulec tył
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
-
Dźwignie hamulcowe
Magura MT5 e-stop, hydraulic, with brake sensor
-
Mechanizm korbowy
Tern GSD custom, Gates CDX CNC machined beltring
-
Osprzęt
Motor integrated
-
Headset
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
-
Pedały
Urban with non-slip surface, sealed bearings
-
Kaseta
Gates CDX, precision CNC machined cog
-

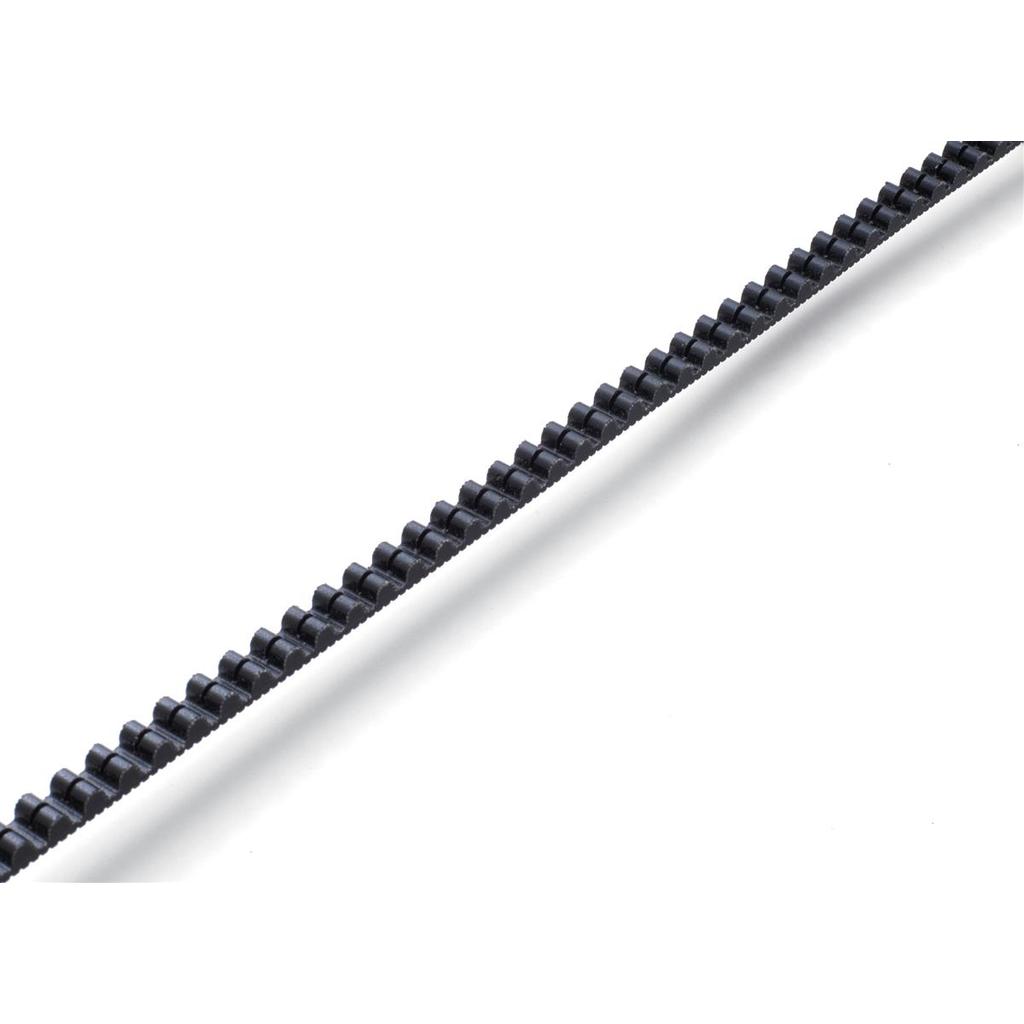

Łańcuch
Gates Carbon Drive CDX belt
-

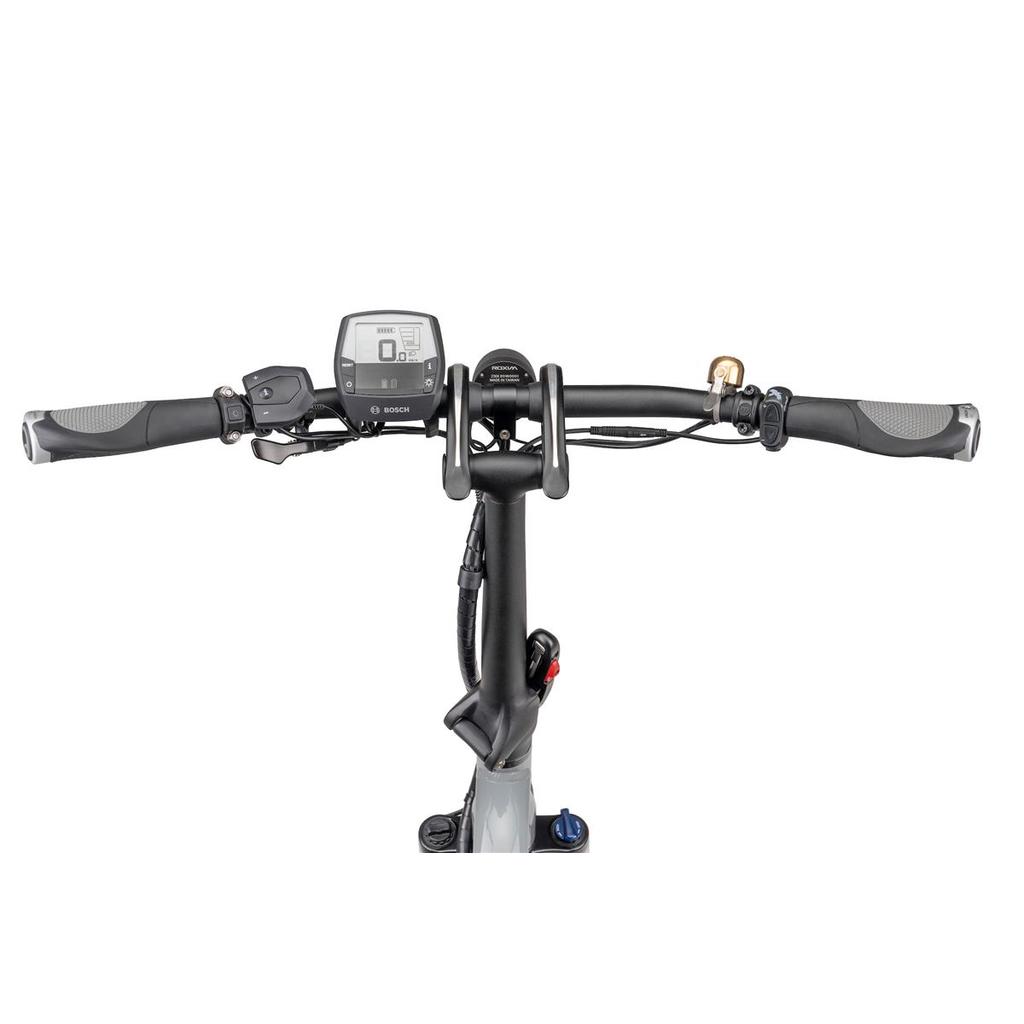

Kierownica
Tern Sweep, 6061-AL, Tern Andros adapted
-
Mostek kierownicy
Tern Andros, adjustable, forged construction, patented technology
-

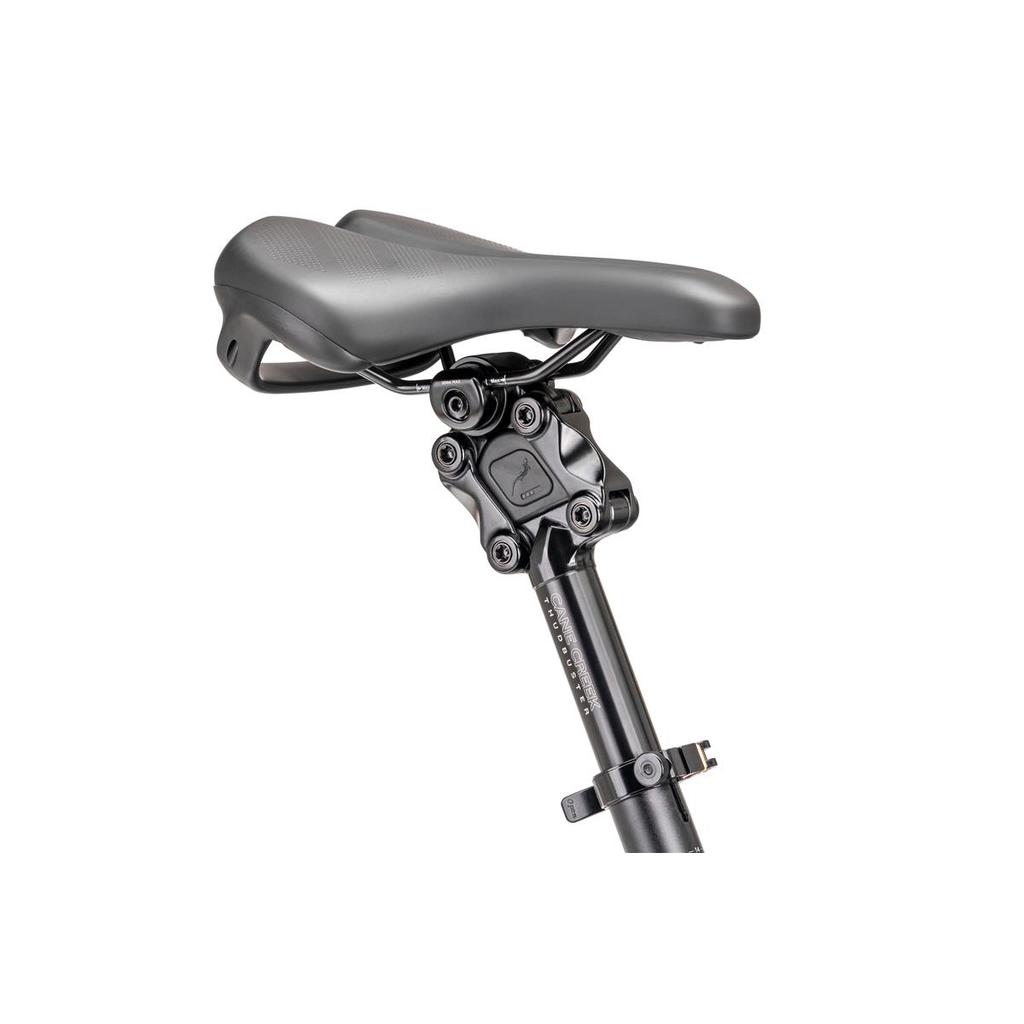

Sztyca
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
-
Siodełko
Tern GSD by Velo, with rear handle
-
Chwyty kierownicy
Ergon
-

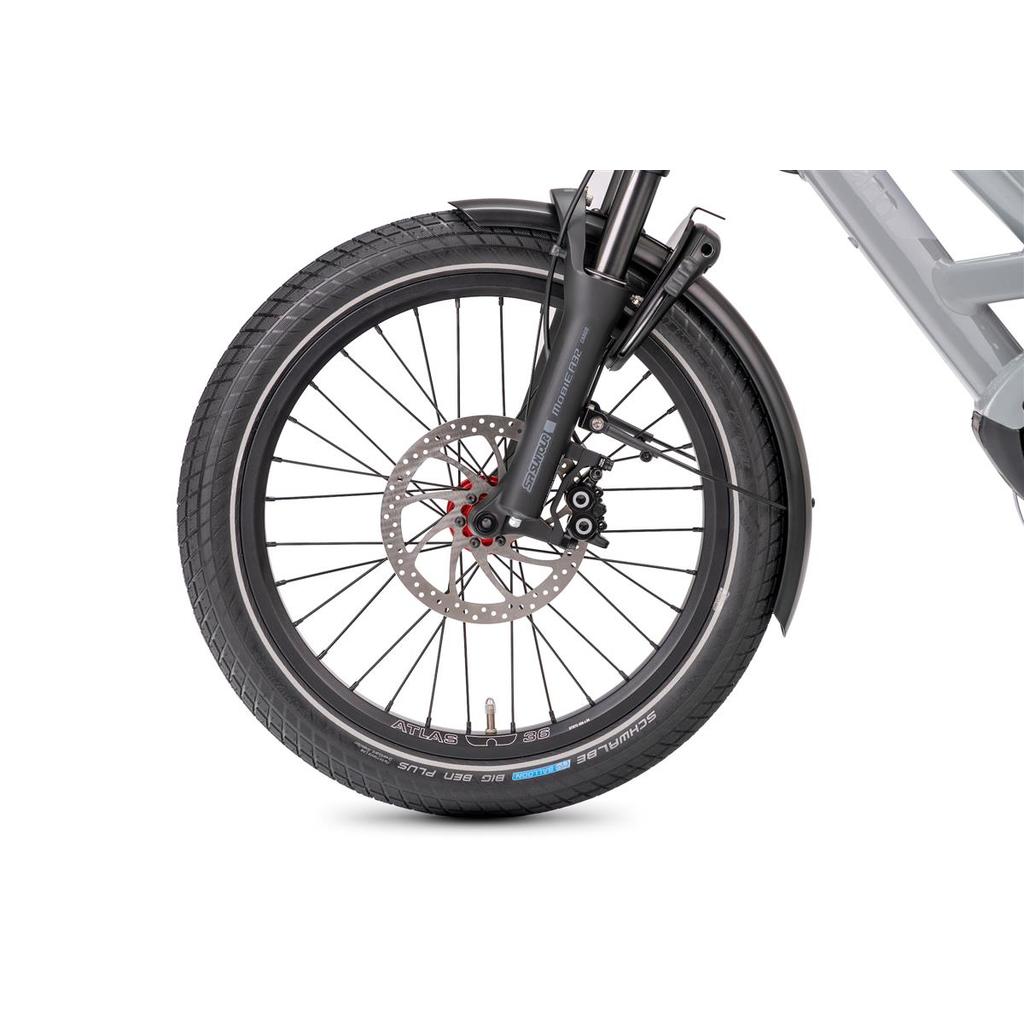

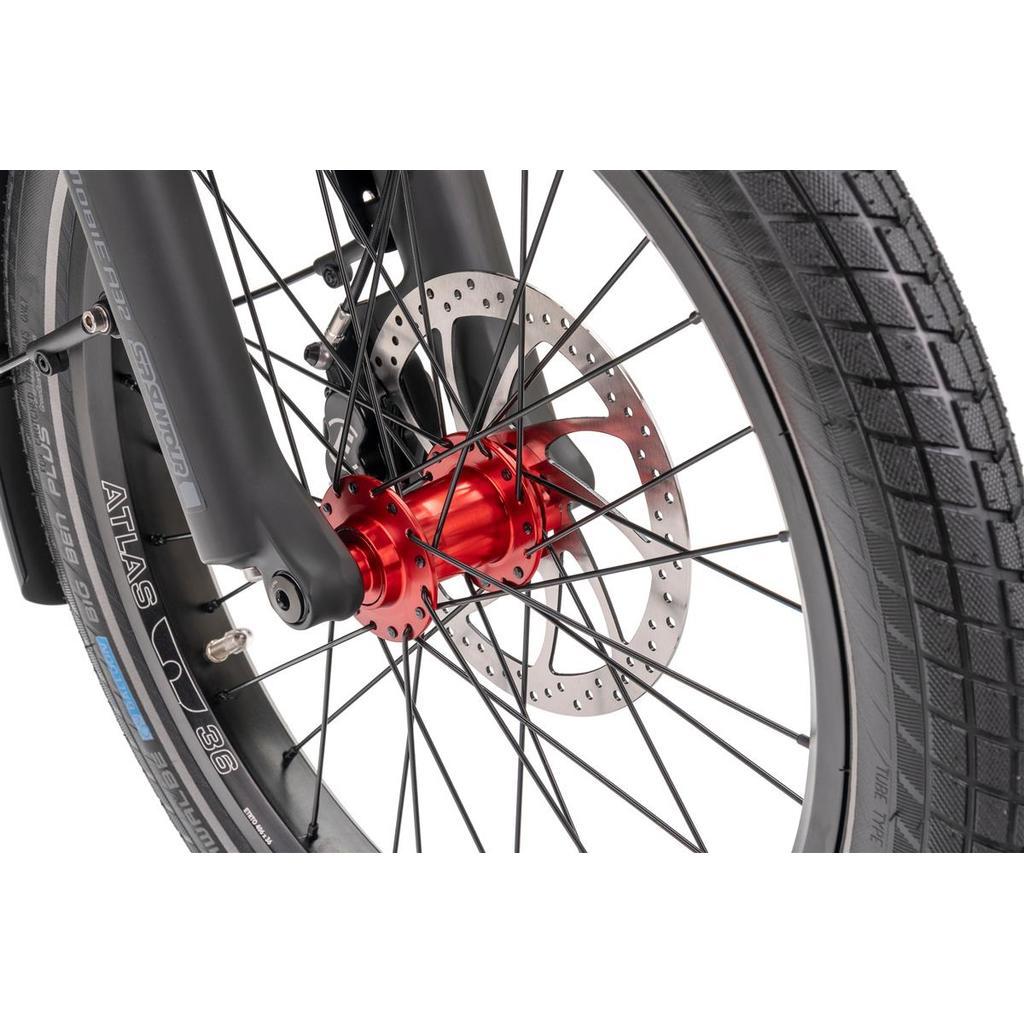

Piasta przód
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
-

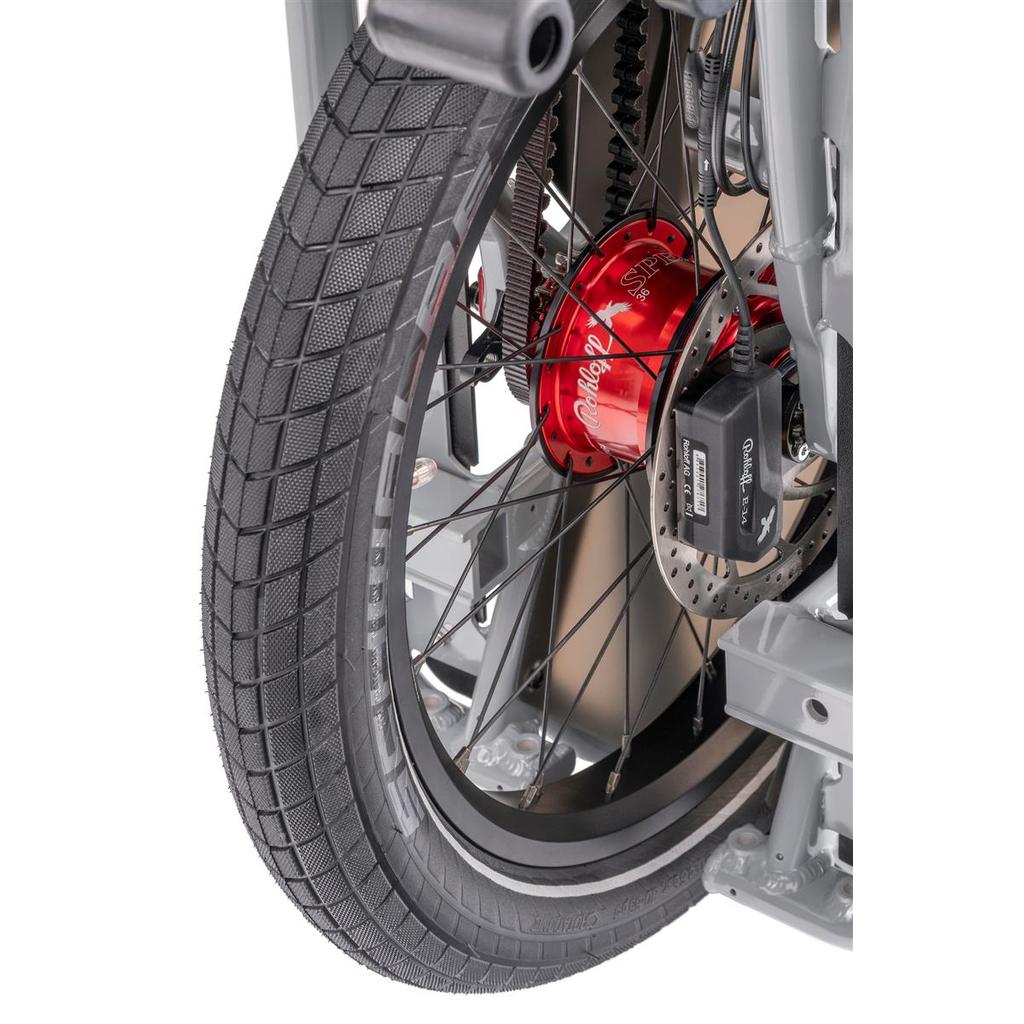

Piasta tył
Rohloff E14, 526% range, Boost
-
Obręcze
Tern Atlas, ultra wide 36 mm, dual reinforced joint
-
Opony
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
-
Tube control
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
-
Display
Bosch Intuvia, Rohloff integrated shifting w/ auto downshift
-
Przejazd
1000 Wh: 102-206 km (63-128 mi)
-
Ładowarka
220V, 4A (EU)
-
DZWON
Pitch Plus, brass
-
Pokrywa łańcucha

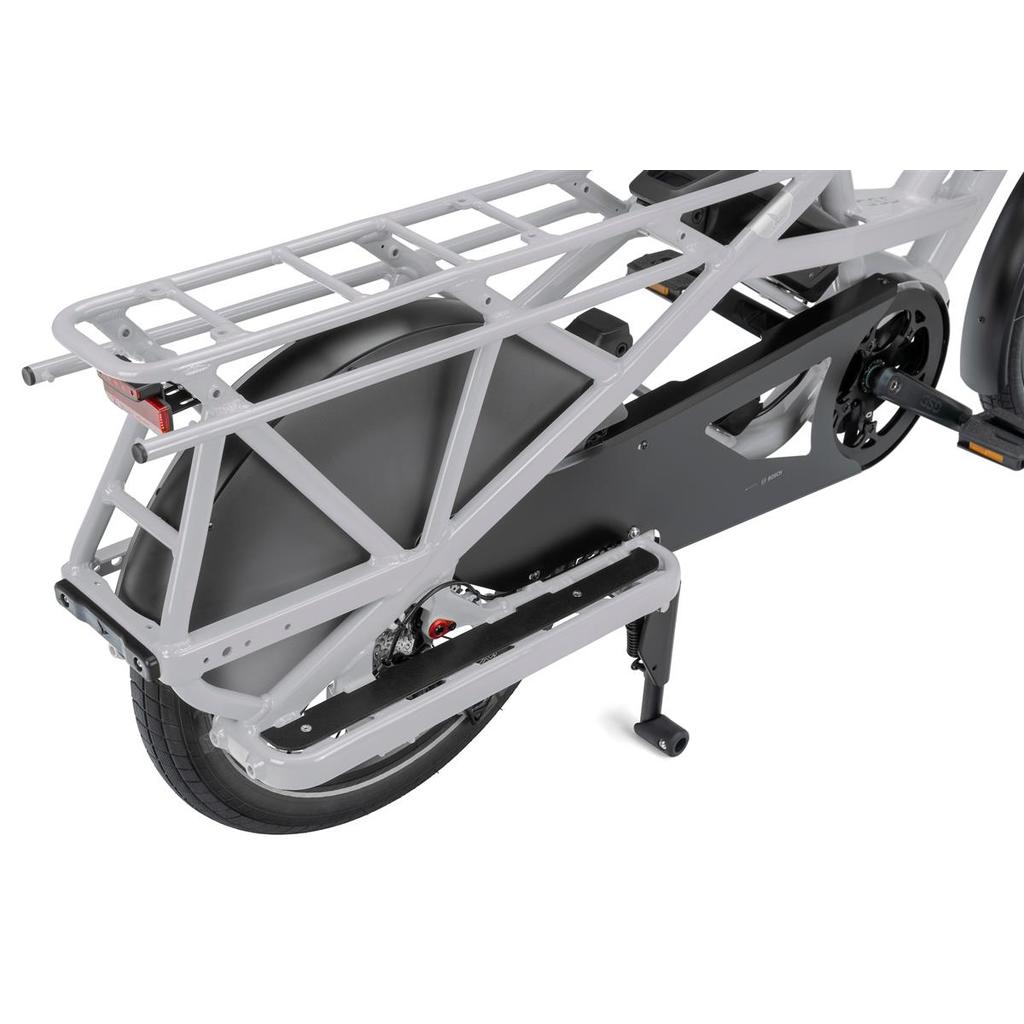

Tern Custom, full chain cover
-

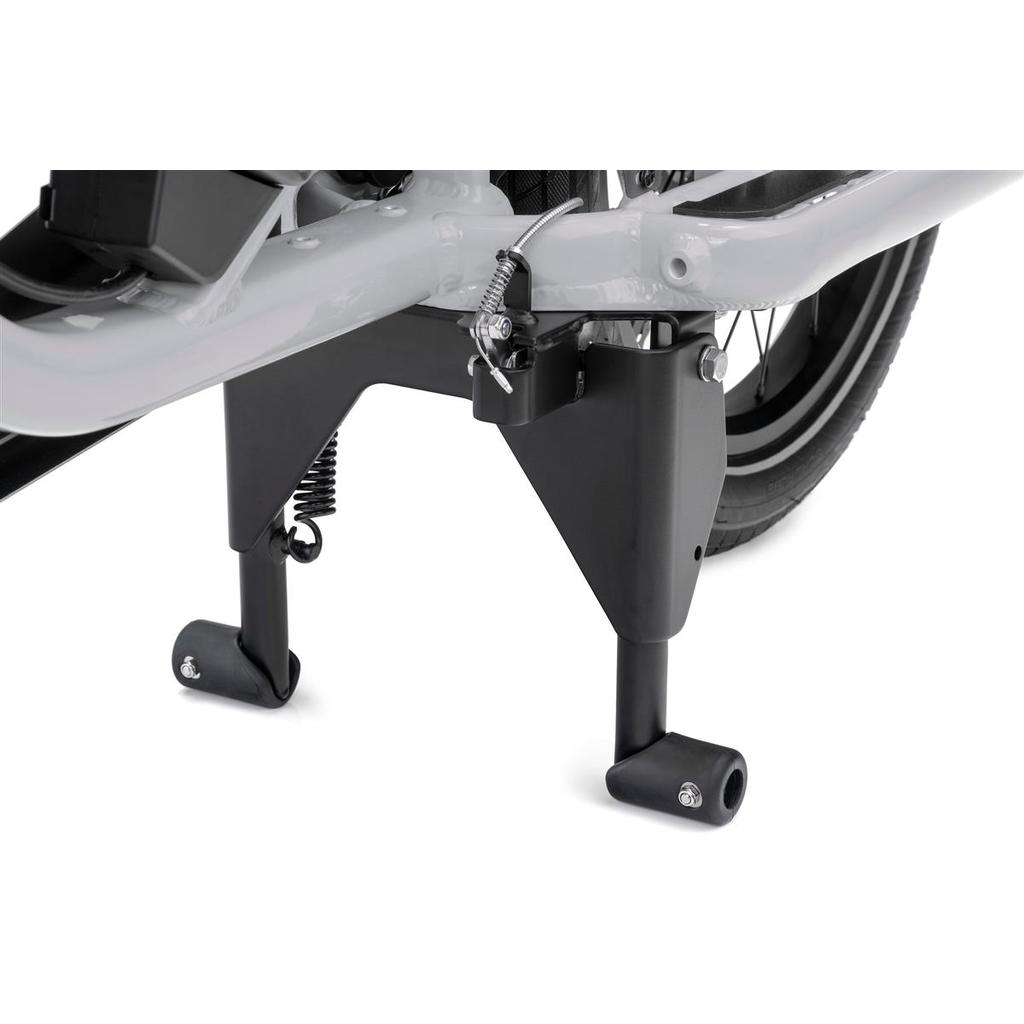

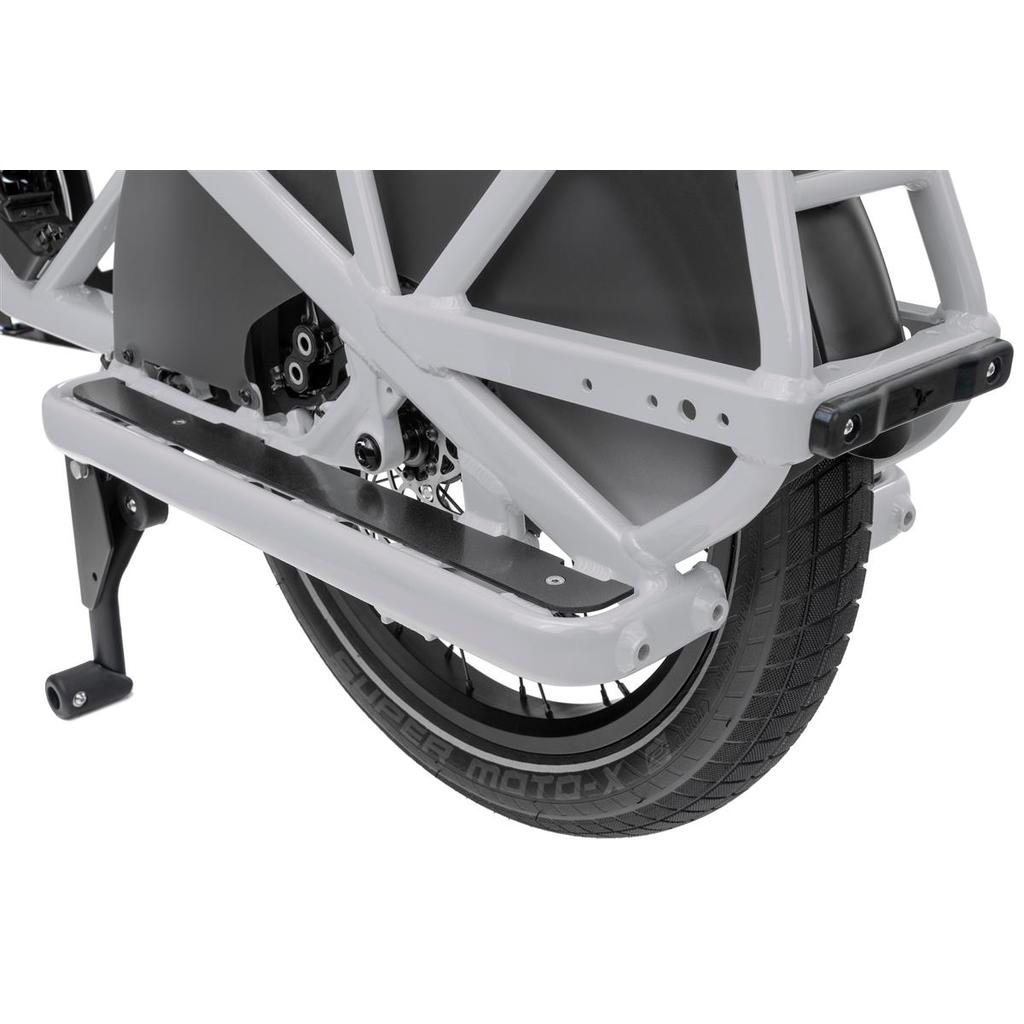

Stojak
Atlas Lockstand, w/ remote unlock, patented technology
-

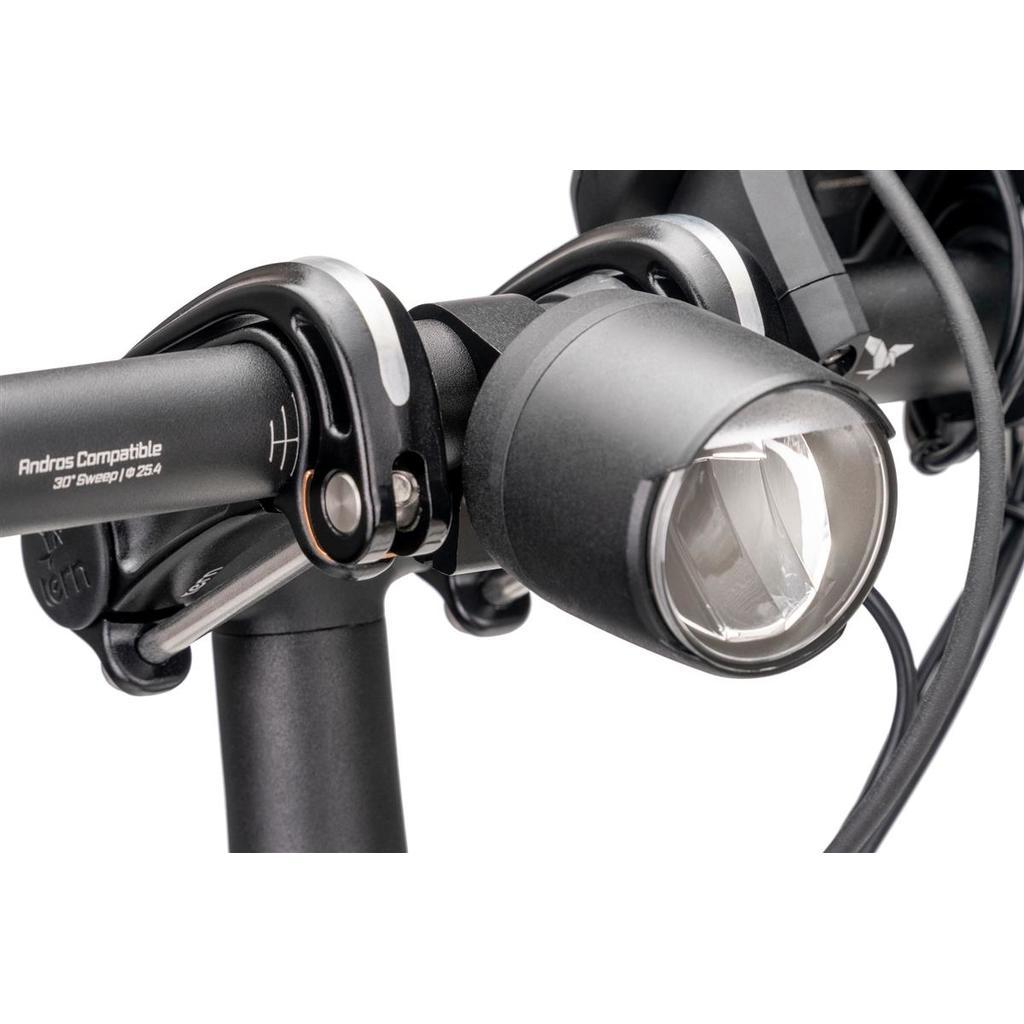

Lampa przód
Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
-

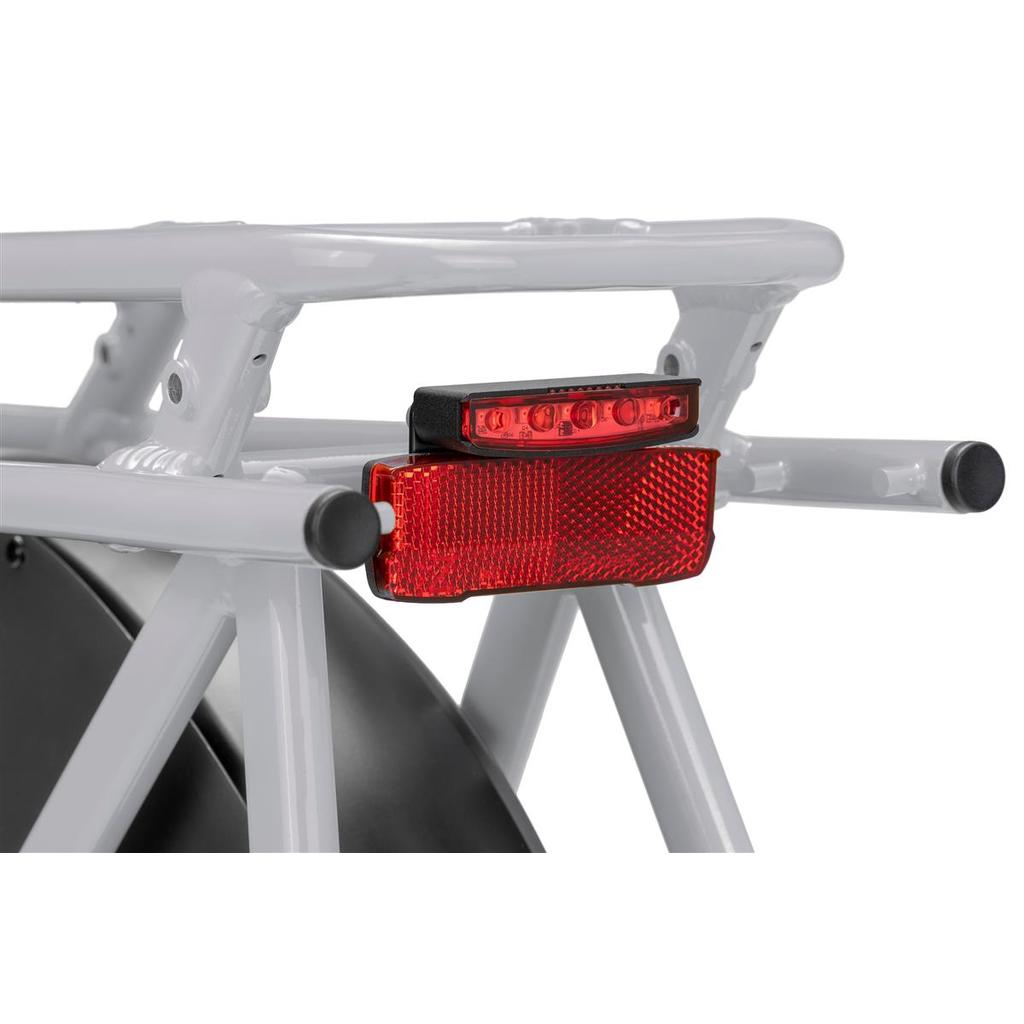

Tylne światła
RearStop Brake Light, Always on brake light
-
Błotniki
Integrated Wheel Guard, AL6061, w/ Side Skirt
-
nośnik
Frame integrated, heavy duty design
